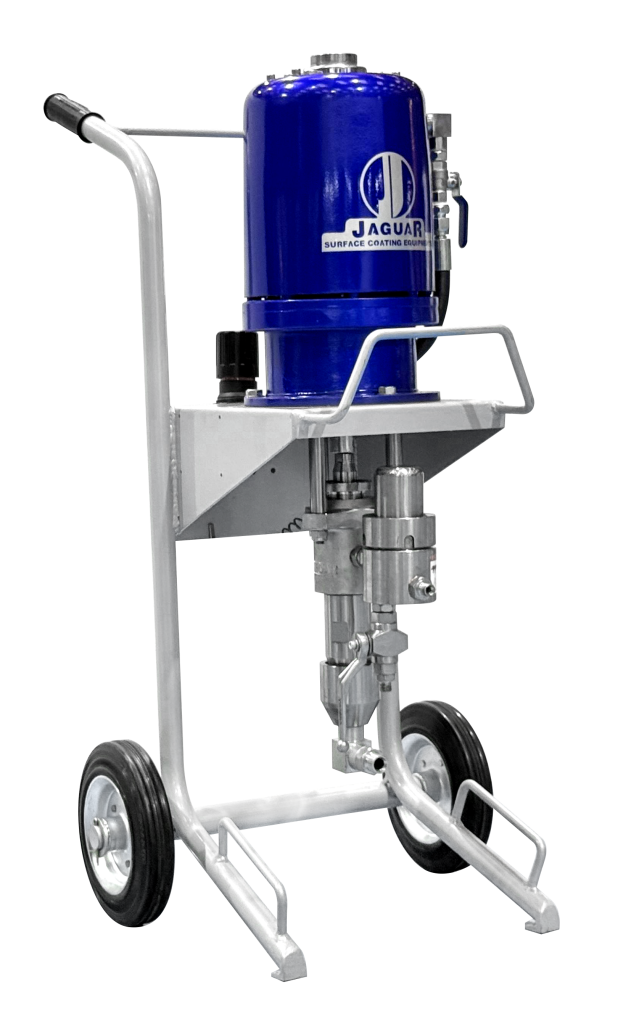

C301 Medium Duty
Technical Specification
Typical Fluid Handled
Application
Technical Specification
- Model : C-301
- Ratio : 30:1
- Output Per Minutes(LTRS) Free Flow : 5.5
- Air Inlet Pressure MAX. (KG/CM2) : 7 / 101.5 PSI
- Output Fluid Pressure MAX. (KG/CM2) : 210 / 3045 PSI
- Fluid Inlet Size : 1/2’’ BSP
- Fluid Outlet Size : 1/4’’ BSP
- Air Inlet : 1/2’’ BSP
- Weight : ~50 KG
Typical Fluid Handled
- Medium volume solid paints
- Medium viscosity coatings
- Low solvent coatings
- Epoxy paints
- Enamel / hr paint
- Polyurethane coatings
- Zinc base coatings
Application
- Pre engineering building structural coating
- Bridges and roof coating
- Rail car and transport vehicles
- Corrosion preventive coating
- Power plants & heavy fabrication
- Foundries
- Injection grouting

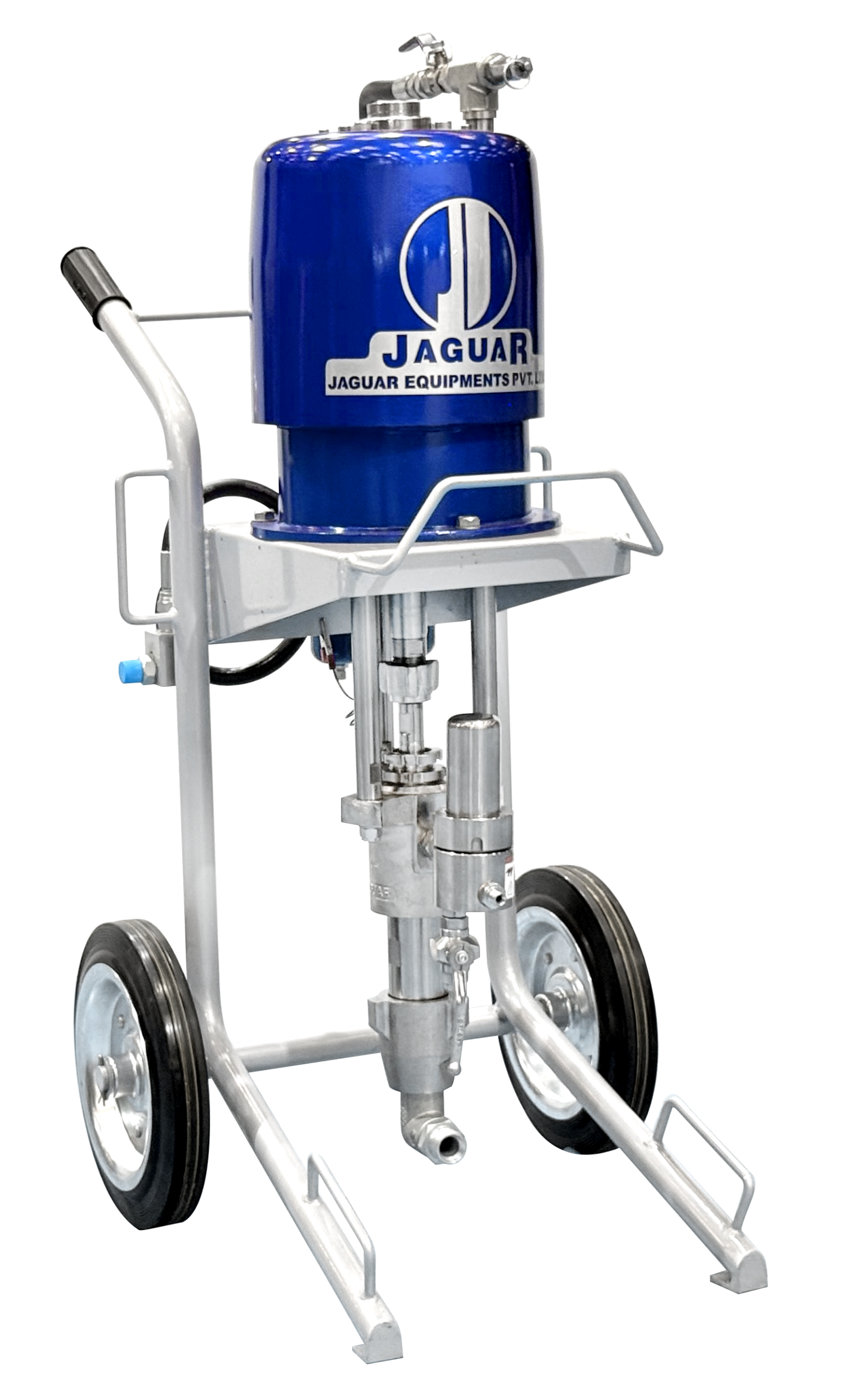

C451 Medium Duty
Technical Specification
Typical Fluid Handled
Application
Technical Specification
- Model : c-451
- Ratio : 45:1
- Output per minutes (ltrs) free flow : 7
- Air inlet pressure max. (kg/cm2) : 7 /101.5 psi
- Output fluid pressure max. (kg/cm2) : 315 / 4567.5 psi
- Fluid inlet size : 1’’ bsp
- Fluid outlet size : 1/4’’ bsp
- Air inlet : 1/2’’ bsp
- Weight : ~75 kg
Typical Fluid Handled
- Medium volume solid paints
- Medium viscosity coatings
- Low solvent coatings
- Epoxy paints
- Polyurethane coatings
- Zinc base coatings
Application
- Pre engineering building structural coating
- Bridges and roof coating
- Rail car and transport vehicles
- Corrosion preventive coating
- Power plants & heavy fabrication
- Foundries

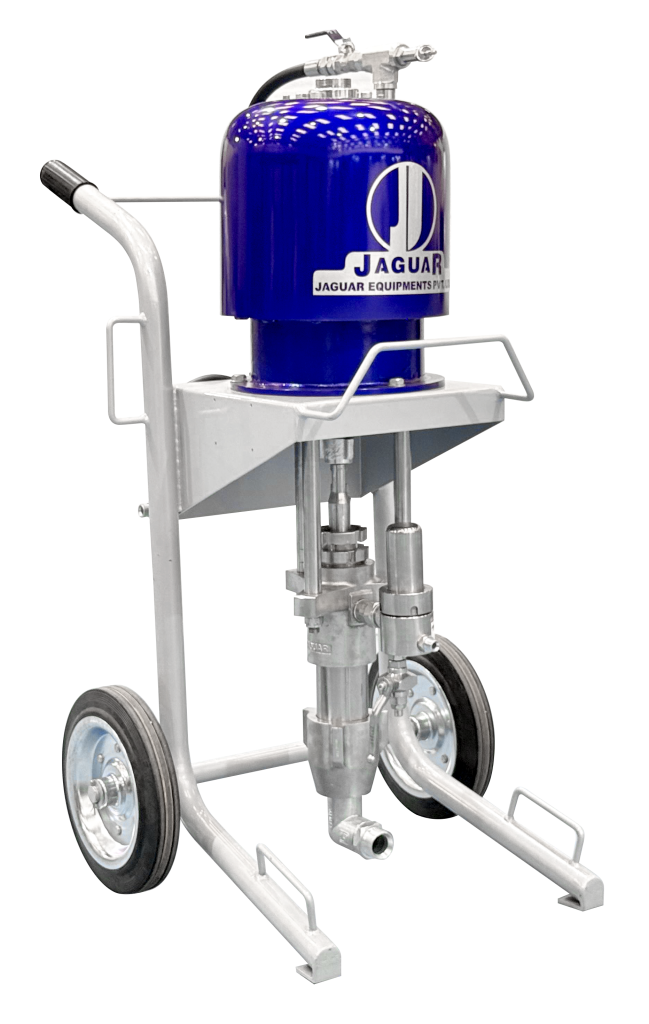

C631 Heavy Duty
Technical Specification
Typical Fluid Handled
Application
Technical Specification
- Model : c-631
- Ratio : 63:1
- Output per minutes (ltrs) free flow : 9
- Air inlet pressure max. (kg/cm2) : 6 / 87 psi
- Output fluid pressure max. (kg/cm2) : 378 / 5481 psi
- Fluid inlet size : 1 1/4’’ bsp
- Fluid outlet size : 3/8’’ bsp
- Air inlet : 1/2’’ bsp
- Weight : ~105 kg
Typical Fluid Handled
- High volume solid paints
- High viscosity coatings
- Solvent less coatings
- Epoxy paints & mastics
- Polyurethane coatings
- Zinc base coatings
- Coltar epoxy
- Waterproof coatings
- Sealants & adhesives spraying
Application
- Marine coating & ship buildings
- Fire retardant coatings
- Pre engineering building structural coating
- Offshore / onshore industries
- Dams and roofs coating
- Refinery
- Pipe internal & external coating
- Corrosion preventive coating
- Power plants
- Floor coatings
C781 Heavy Duty
Technical Specification
Typical Fluid Handled
Application
Technical Specification
- Model : C-781
- Ratio : 78:1
- Output per minutes (ltrs) free flow : 9
- Air inlet pressure max. (kg/cm2) : 6 / 87 psi
- Output fluid pressure max. (kg/cm2) : 468 / 6786 psi
- Fluid inlet size : 1 1/4’’ bsp
- Fluid outlet size : 3/8’’ bsp
- Air inlet : 1/2’’ bsp
- Weight : ~105 kg
Typical Fluid Handled
- High volume solid paints
- High viscosity coatings
- Solvent less coatings
- Epoxy paints & mastics
- Polyurethane coatings
- Zinc base coatings
- Coltar epoxy & glassflex epoxy
- Waterproof coatings
- Sealants & adhesives spraying
Application
- Marine coating & ship buildings
- Fire retardant coatings
- Pre engineering building structural coating
- Offshore / onshore industries
- Dams and roofs coating
- Refinery
- Pipe internal & external coating
- Corrosion preventive coating
- Power plants
- Floor coatings
