Hot airless Spray Machine
Previous
Next

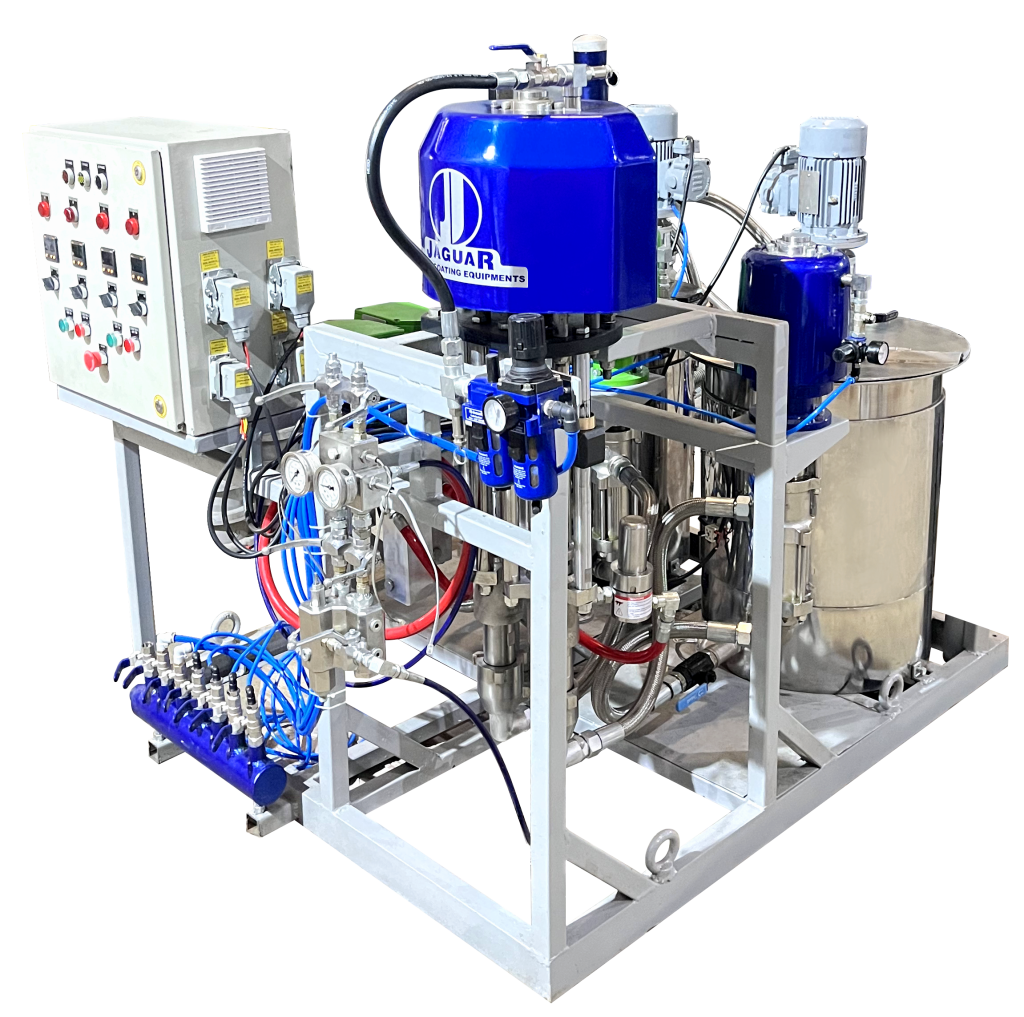

The Plural Component Airless Spray Machine Suitable For Processing Of Highly Viscous, Solvent-free 2k or 3k Materials With Extremely Short Pot Life.
Two-component airless spray equipment is a type of painting system used for applying coatings that require mixing two different components, such as a base and a catalyst, before application. This equipment typically uses a high-pressure pump to atomize the mixture and apply it to a surface .It’s often used for industrial applications where a durable and high-quality finish is needed.
Two-component airless spray equipment is a type of painting system used for applying coatings that require mixing two different components, such as a base and a catalyst, before application. This equipment typically uses a high-pressure pump to atomize the mixture and apply it to a surface .It’s often used for industrial applications where a durable and high-quality finish is needed.
- Consistant material quality with perfect mixing.
- Easy to operate and maintain.
- Different mixing ratios can be achieved by using multiple hydraulic sections.
- Can be used for variety of coatings with very high viscosity and extremely short pot life.
- Inbuilt ratio check facility.
- Integrated automatic re-circulation system.
- Electro pneumatically controlled severe duty mixing manifold.
- Waste Water Treatment
- Onshore & Offshore Industry
- Container Construction
- Pipe & Pipeline Coating
- Rail & Wagon Industry
- Steel, Wind Power Ondustry
- Paint Supply System
- Building & Corrosion Protection
| Model | JMIX 1 : 1 | JMIX 1.4 : 1 | JMIX 1.5 : 1 | JMIX 2 : 1 | JMIX 2.5 : 1 | JMIX 3 : 1 | JMIX 4 : 1 |
|---|---|---|---|---|---|---|---|
|
Pressure Ratio |
72 : 1 |
63 : 1 |
60 : 1 |
71 : 1 |
76 : 1 |
66 : 1 |
70 : 1 |
|
Max Fluid Pressure |
432 bar |
378 bar |
360 bar |
426 bar |
456 bar |
396 bar |
420 bar |
|
Flow Rate |
11 LPM |
13.5 LPM |
9 LPM |
12 LPM |
11 LPM |
13 LPM |
12 LPM |
|
Mix Ratios |
1 : 1 |
1.4 : 1 |
1.5 : 1 |
2 : 1 |
2.5 : 1 |
3 : 1 |
4 : 1 |
Plural Component Injection Grouting Machine
Previous
Next
Features
Application
Features
- Consistant material quality with perfect mixing.
- Easy to operate and maintain.
- Different mixing ratios can be achieved by using multiple hydraulic sections.
- Can be used for variety of coatings with very high viscosity and extremely short pot life.
- Inbuilt ratio check facility.
- Integrated automatic re-circulation system.
- Electro pneumatically controlled severe duty mixing manifold.
Application
- Waste Water Treatment
- Onshore & Offshore Industry
- Container Construction
- Pipe & Pipeline Coating
- Rail & Wagon Industry
- Steel, Wind Power Ondustry
- Paint Supply System
- Building & Corrosion Protection
Jaguar Surface Coating Equipments has developed comprehensive polyurea coating equipments for different needs according to application area, environments, substrate, stress circumstances, and needed tolerance. For selected roof and concrete applications, we offer both pure polyurea and modified polyurea coating systems.
- Consistant material quality with perfect mixing.
- Easy to operate and maintain.
- Different mixing ratios can be achieved by using multiple hydraulic sections.
- Can be used for variety of coatings with very high viscosity and extremely short pot life.
- Inbuilt ratio check facility.
- Integrated automatic re-circulation system.
- Electro pneumatically controlled severe duty mixing manifold.
- Waste Water Treatment
- Onshore & Offshore Industry
- Container Construction
- Pipe & Pipeline Coating
- Rail & Wagon Industry
- Steel, Wind Power Ondustry
- Paint Supply System
- Building & Corrosion Protection
| Technical Data | 30 | 40 |
|---|---|---|
|
Mixing ratio |
1:1 |
1:1 |
|
Pressure ratio
|
30:1 |
40:1 |
|
Output per cycle |
200 cc |
180 cc |
|
Max. air inlet pressure |
6 bar |
6 bar |
|
Max. Flow |
8 LPM |
7.2 LPM |
|
Material flow heaters |
12 kw |
12 kw |
|
Max. hose length |
15 Mtr |
15 Mtr |
|
Voltage/phases |
415V / 3P |
415V / 3P |
|
Max. operating pressure |
180 bar |
240 bar |
|
Max. power consumption |
13.5 kw |
13.5 kw |
